timbers-chrome-ext

PDX Matchday

CI codecov

A Chrome-first matchday extension for Portland Timbers and Portland Thorns supporters, with live countdowns, viewing details, standings, kickoff and goal alerts, and an integrity-controlled fan confidence poll.

Project Status

Features

Browser Support

Browser Minimum Version Status
Chrome Current stable Primary review target; older versions not verified
Edge Current stable Chromium candidate; separate browser verification required
Safari Current macOS/Xcode Conversion tooling provided; compatibility not verified

Installation

Reviewer path and branch identity

Recorded checks and limitations

Use main explicitly: GitHub’s default develop branch has a different layout and development history. At the September 30 review, main was 7cb124a and develop was 2287dce; they had diverged. This README describes the main layout (extension/). Commit identity, source version, and the installed store package are separate evidence; inspect the store’s displayed version before comparing them. No branch reconciliation is required for local review.

Start with fallback resolution, failure-mode tests, and popup behavior tests. The popup suite loads the actual script through Jest so exercised behavior contributes to coverage. Coverage includes the four extension logic files; API and emulator suites are separate.

No .env file or production credentials are required for install, lint, type-check, unit tests, builds, or the demo-project emulator suites. Use Node 22 and npm 10/11; test:rules additionally needs Java 21+. Run npm run verify:phase0 for the complete local pipeline. First emulator execution downloads a Java archive.

The packaged public runtime config points at the deployed backend. Browsing schedules makes read requests; community features can create anonymous authentication sessions and submit records. For isolated review, use test fixtures and the emulator, and do not vote or delete community data. npm run dev is a popup preview, not a complete replacement for loading the extension. Backend deployment requires separately configured Firebase projects and operator credentials; deployment/export/smoke commands are not setup steps.

Prerequisites

Setup

git clone --branch main https://github.com/Tony5897/timbers-chrome-ext.git
cd timbers-chrome-ext
npm ci
npm run build:icons

Chrome / Edge

  1. Navigate to chrome://extensions (or edge://extensions)
  2. Enable Developer mode
  3. Click Load unpacked and select the extension/ folder

Safari (macOS)

Safari requires converting the extension into an Xcode project using Apple’s tooling.

Requirements: macOS with full Xcode installed (not just Command Line Tools).

  1. Set Xcode as the active developer directory (one-time):

    sudo xcode-select -s /Applications/Xcode.app

  2. Run the conversion script:

    npm run build:safari

    This creates a safari/ directory containing the Xcode project.

  3. Open the generated Xcode project:

    open safari/PDX\ Matchday/PDX\ Matchday.xcodeproj

  4. In Xcode, select a signing team under Signing & Capabilities, then build and run (Cmd+R).

  5. Enable the extension in Safari:

    • Safari > Settings > Extensions > enable PDX Matchday

For unsigned development builds:

Safari verification boundary

Conversion alone does not establish Safari support. Verify these APIs, permissions, authentication, notifications, and service-worker behavior on the intended macOS/Safari version:

No minimum Safari version is claimed by the current verification record.

Usage

Click the PDX Matchday icon in the browser toolbar to open the popup. Choose Portland Timbers or Portland Thorns; the extension reads the latest schedule, standings, and live state from the Matchday API and displays the next upcoming match with a live countdown timer.

Use the Confidence Poll section to vote on your confidence level and see how other fans are feeling.

Development

npm Scripts

Command Description
npm test Run Jest test suite with coverage
npm run test:watch Run tests in watch mode
npm run dev Serve the popup at http://localhost:4173/popup.html outside the extension shell, for quick UI iteration (supports ?team= and ?scheme= preview params)
npm run lint Run ESLint across the repository
npm run typecheck Build shared packages and type-check every TypeScript workspace
npm run build Build the API and verified extension release artifact
npm run build:packages Build shared contract and domain workspaces
npm run build:api Build shared packages and the Firebase API
npm run test:api Run compatibility API unit tests
npm run test:rules Build the API and run Firestore emulator suites
npm run export:legacy Export legacy vote records for the Firestore migration
npm run package:extension Build the exact Chrome Web Store ZIP
npm run verify:extension Verify ZIP inventory and secret exclusions
npm run preflight:phase0 Validate local release tooling, configuration, and optional backup evidence before a deploy
npm run smoke:phase0 Exercise deployed public and optional authenticated API behavior
npm run verify:phase0 Run the full local verification pipeline: lint, typecheck, tests, and build
npm run clean Remove generated build, coverage, package, and emulator output
npm run build:icons Generate 16/48/128px icons from icon.png
npm run build:store-assets Regenerate Chrome Web Store screenshots and promo images from the live popup
npm run verify:store-assets Verify store asset dimensions and approved content digests
npm run build:safari Convert to Safari Web Extension (requires Xcode)

Project Structure

timbers-chrome-ext/
├── extension/                 # The installable Chrome/Edge/Safari extension
│   ├── manifest.json          # Extension manifest (MV3)
│   ├── background.js          # Service worker — fetches and caches match data
│   ├── popup.html             # Extension popup UI
│   ├── popup.js               # Popup logic — countdown, voting, data display
│   ├── styles.css             # Popup stylesheet (CSS custom properties design system)
│   ├── runtime-config.js      # Public Firebase and API runtime configuration
│   ├── auth.js                # Firebase anonymous authentication client
│   ├── community.js           # Authenticated compatibility API client
│   ├── icon.png                # Source icon (640×640)
│   ├── icons/                  # Generated extension icons
│   │   ├── icon-16.png
│   │   ├── icon-48.png
│   │   └── icon-128.png
│   └── data/
│       └── fallback.json       # Bundled match fixture (last-resort fallback)
├── scripts/
│   ├── generate-icons.js     # Sharp-based icon generator
│   ├── convert-safari.sh     # Safari Web Extension converter wrapper
│   ├── package-extension.mjs # Exact Chrome ZIP builder
│   ├── phase0-readiness.mjs  # Release environment and evidence preflight
│   ├── smoke-phase0.mjs      # Deployed API smoke-test evidence runner
│   ├── clean-generated.mjs   # Removes rebuildable generated output
│   └── cleanup-safari-resources.py  # Post-conversion Xcode bundle cleaner
├── packages/
│   ├── contracts/            # Shared Zod API and domain contracts
│   └── domain/               # Shared team configuration and stable identifiers
├── services/api/             # Firebase Functions compatibility backend
├── emulator-tests/           # Firestore rules tests
├── tests/
│   ├── scraper.test.js       # Background scraper unit tests
│   ├── popup.test.js         # Popup UI and integration tests
│   ├── auth.test.js          # Firebase anonymous auth client tests
│   ├── community.test.js     # Compatibility API client tests
│   └── mocks/
│       └── styleMock.js      # Jest CSS mock
├── .github/workflows/ci.yml  # GitHub Actions CI pipeline
├── CONTRIBUTING.md           # Contribution guidelines
├── PRIVACY.md                # Privacy policy
└── LICENSE                   # ISC License

Extension Messaging Architecture

Chrome extensions run in isolated execution contexts — the popup UI and the background service worker cannot share memory or call each other’s functions directly. This project uses Chrome’s runtime messaging API to bridge them.

Data flow

┌─────────────┐   sendMessage({ action: 'getMatchData' })   ┌──────────────┐
│  popup.js   │ ──────────────────────────────────────────▶  │ background.js│
│  (popup UI) │                                              │ (service wkr)│
│             │ ◀──────────────────────────────────────────  │              │
└─────────────┘   sendResponse({ matchData })                └──────┬───────┘
                                                                    │
                                                     fetchAndParseSchedule()
                                                                    │
                                                                    ▼
                                              Matchday API (Firebase)
                                                                    │
                                                                    ▼
                                              ESPN provider boundary
  1. Popup opens — popup.js dispatches chrome.runtime.sendMessage({ action: 'getMatchData' }) and shows a skeleton loader while waiting.
  2. Background handles request — background.js listens via chrome.runtime.onMessage.addListener and reads the Matchday API boundary. It uses cached data from chrome.storage.local and the bundled Timbers fixture only when the API is unavailable; the packaged extension does not call ESPN directly. The response includes a source field ('live', 'cache', or 'fallback') so the popup can indicate data freshness.
  3. Popup renders — On success the popup displays match data and starts the countdown timer. If the data came from cache or fallback, a subtle notice is shown. The error state only appears if all three tiers return nothing.

Periodic refresh

The background service worker creates a chrome.alarms alarm (fetchDataAlarm, 60-minute interval) that independently fetches and caches match data in chrome.storage.local. This ensures fresh data is available even if the popup hasn’t been opened recently — and avoids redundant network requests when the user does open it.

Vote persistence

The popup keeps local interaction state in chrome.storage.local, then submits community responses through the authenticated compatibility API using a Firebase anonymous installation identity. The server validates the client version, poll window, request body, anonymous identity, idempotency key, and rate limit before accepting a response. Community aggregates are labeled integrity_controlled; this means one accepted response per anonymous Firebase UID and poll, not one verified person.

Shared Platform API

The npm workspace foundation introduces shared Zod contracts and domain configuration used by the deployed Firebase API. The following read routes are implemented for the compatibility API and are covered by staging and production smoke checks:

Route Purpose
GET /v1/health Liveness check; returns {"status":"ok"} when the API is reachable
GET /v1/config Public API version, minimum client version, team capabilities, and feature flags
GET /v1/teams Active and planned team configurations
GET /v1/teams/{teamId} One team configuration and capability document
GET /v1/matches/next?teamId={teamId} Next canonical match plus discoverable confidence poll for an enabled team
GET /v1/standings?teamId={teamId} Team standings with source and freshness metadata
GET /v1/matches/live?teamId={teamId} Current live score and normalized match events when a match is live
GET /v1/polls/{pollId}/aggregate Integrity-controlled confidence aggregate addressed by a stable match-qualified poll ID

Public poll IDs use poll-{matchId}-confidence-v1, for example poll-espn-401999001-confidence-v1. Legacy timestamp document IDs remain private compatibility storage details and are resolved behind the repository boundary. Timbers and Thorns schedule, standings, polling, live-event, and notification capabilities are enabled behind capability gates. The extension consumes these capabilities through the Matchday API; ESPN remains the provider boundary.

Security Considerations

Chrome Web Store

Get PDX Matchday on the Chrome Web Store →

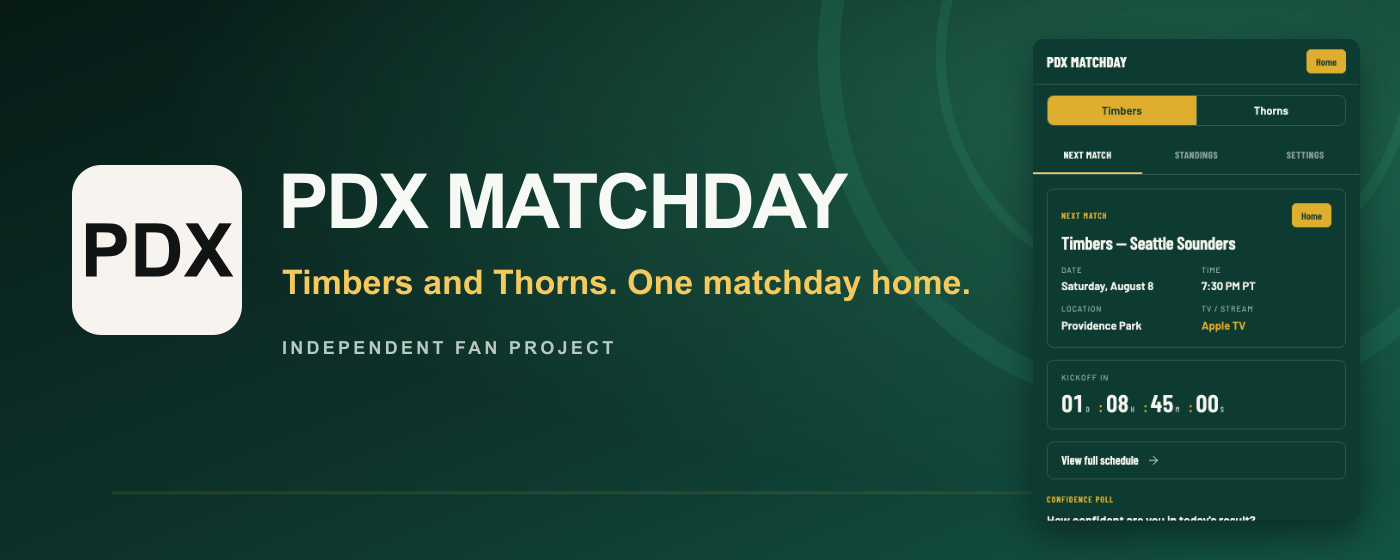

Chrome Web Store presentation preview

The extension is live and publicly listed on the Chrome Web Store — searchable in the store as well as installable via direct link. The original package was submitted and approved on March 6, 2026; release 1.0.5 was submitted and approved on 2026-09-25.

Store publication is intentionally outside the automated deployment workflow.

The original PDX Matchday identity, required promotional graphics, and five current-feature screenshots ship with this repository. Listing copy, permission justifications, privacy disclosures, release notes, and the final human review checklist are maintained privately and are not published in this repository. No current artwork uses a club crest, league mark, or official trade dress, and the listing explicitly identifies the extension as an independent fan project.

Privacy

See PRIVACY.md for the full privacy policy.

Summary: Match data and local poll state are stored in extension-local browser storage. Community polling uses a Firebase anonymous account and the authenticated Matchday API. The public package does not send passive product analytics or regional analytics.

Analytics

Passive product analytics and regional analytics are disabled in the compatibility release. Any future analytics implementation requires a separate opt-in, updated runtime behavior, updated store disclosures, and a matching privacy-policy release.

Contributing

  1. Fork the repository
  2. Create a feature branch (git checkout -b feature/my-feature)
  3. Commit your changes and push to your fork
  4. Open a pull request against main

License

This project is licensed under the ISC License. See LICENSE.
